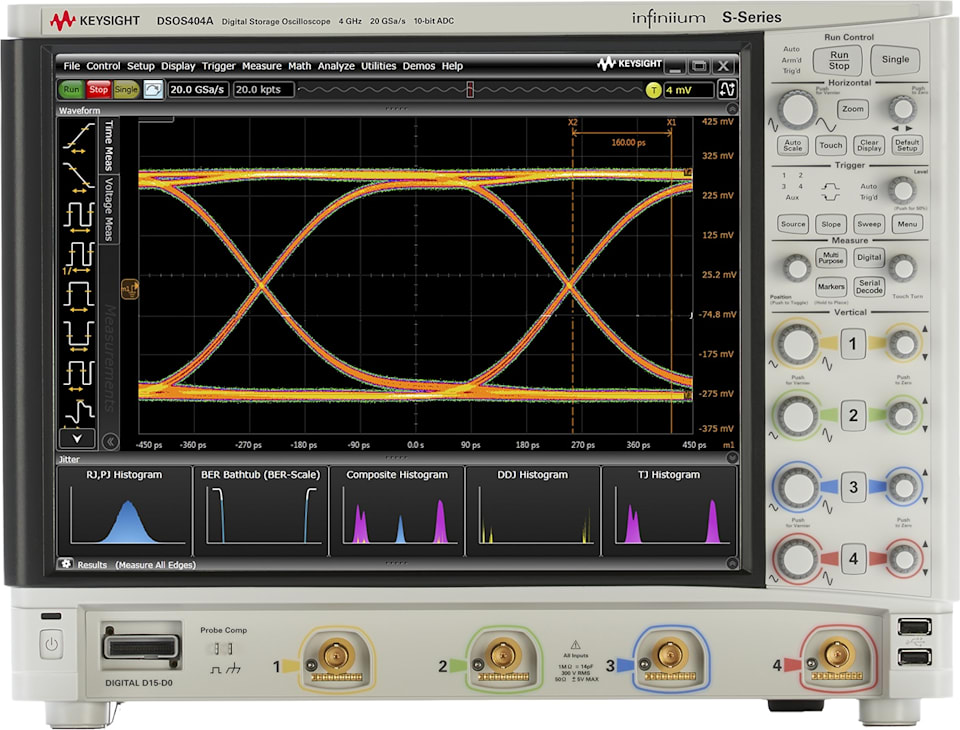

Specifications – Keysight DSOS404A
| Specification | Value |
|---|---|
| Bandwidth | 4 GHz (upgradable) |
| Channels | 4 analog channels |
| Sample rate | 20 GSa/s max |
| Memory depth | 100 Mpts/channel standard |
| ADC resolution | 10-bit (up to 16-bit enhanced resolution) |
| Display | 15-inch XGA capacitive touchscreen |
Note: The specifications above are for reference only. Please refer to the official datasheet for exact information.
Highlights
- Superior signal integrity with a system ENOB of 8.1 bits at full bandwidth
- Enhanced resolution mode achieves up to 16 bits of vertical resolution
- 15-inch multi-touch capacitive touchscreen with solid-state drive for fast boot and reliability
- 100 Mpts/channel of standard acquisition memory at 20 GSa/s max sample rate
- Wide range of protocol, compliance, and analysis software
This Keysight DSOS404A is a genuine, factory-calibrated unit distributed by AMPELAB, offering reliable bench-level performance for training, repair, and production QA applications.
What’s included:
- Four N2873A 500 MHz passive probes
- Probe accessory pouch
- 8 GHz BNC calibration cable
- Keysight I/O libraries suite
- Keyboard and mouse
- User and programmer’s guides on oscilloscope drive
Applications – Keysight DSOS404A
The Keysight DSOS404A is well suited for high-speed serial bus validation, signal integrity and jitter analysis, and advanced digital design debug in R&D labs.
Explore our full range of oscilloscopes for other bandwidth and channel options.
